  • Very cool! I am just so impressed with the fine job folks have been doing on their liveries with this model. Can't wait to add mine.
    My YouTube RC videos:
    https://www.youtube.com/@toddbreda

    Comment


    • Originally posted by 4923crew View Post
      First Flight video footage of my custom AL37 made into a close but not exact Kc-135. It flew really well and other than the extra battery weight, there was minimal change to flight characteristics from stock.

      video link below:

      https://youtu.be/Z7AxmLq6O-Y
      Well done.
      Mike
      \"When Inverted Down Is Up And Up Is Expensive\"

      Comment


      • Originally posted by 4923crew View Post
        Well my customizing mind just can’t rest. I had the idea to make a tanker out of an AL37 and ended up with my KC-37 (not a real bird). Well like I said above I cant rest. Well without further delay. Introducing the AL37 in an attempt to make a KC-135 Tanker. I added two more 70mm motors and nacelles making a QUAD 70mm edf jet.


        Well what do you think??? The first flight after this mod will hopefully be accomplished tomorrow (weather permitting)


        Very cool. I thought you were just adding the nacelles only! Looked like it flew well but tankers are built to carry a lot of weight. ;-) World's first KC-137.....

        Comment


        • Certainly different and pretty cool especially on slow fly by. The climb out ? Not so scale but what the hey ! Post some details of the installation of those two motors if you can.

          Comment

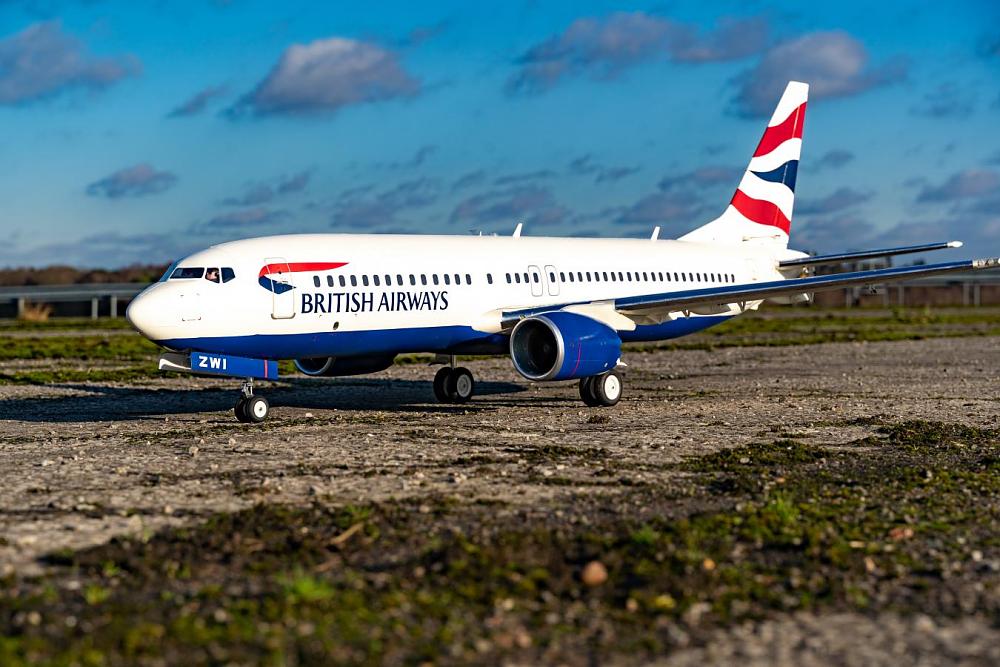

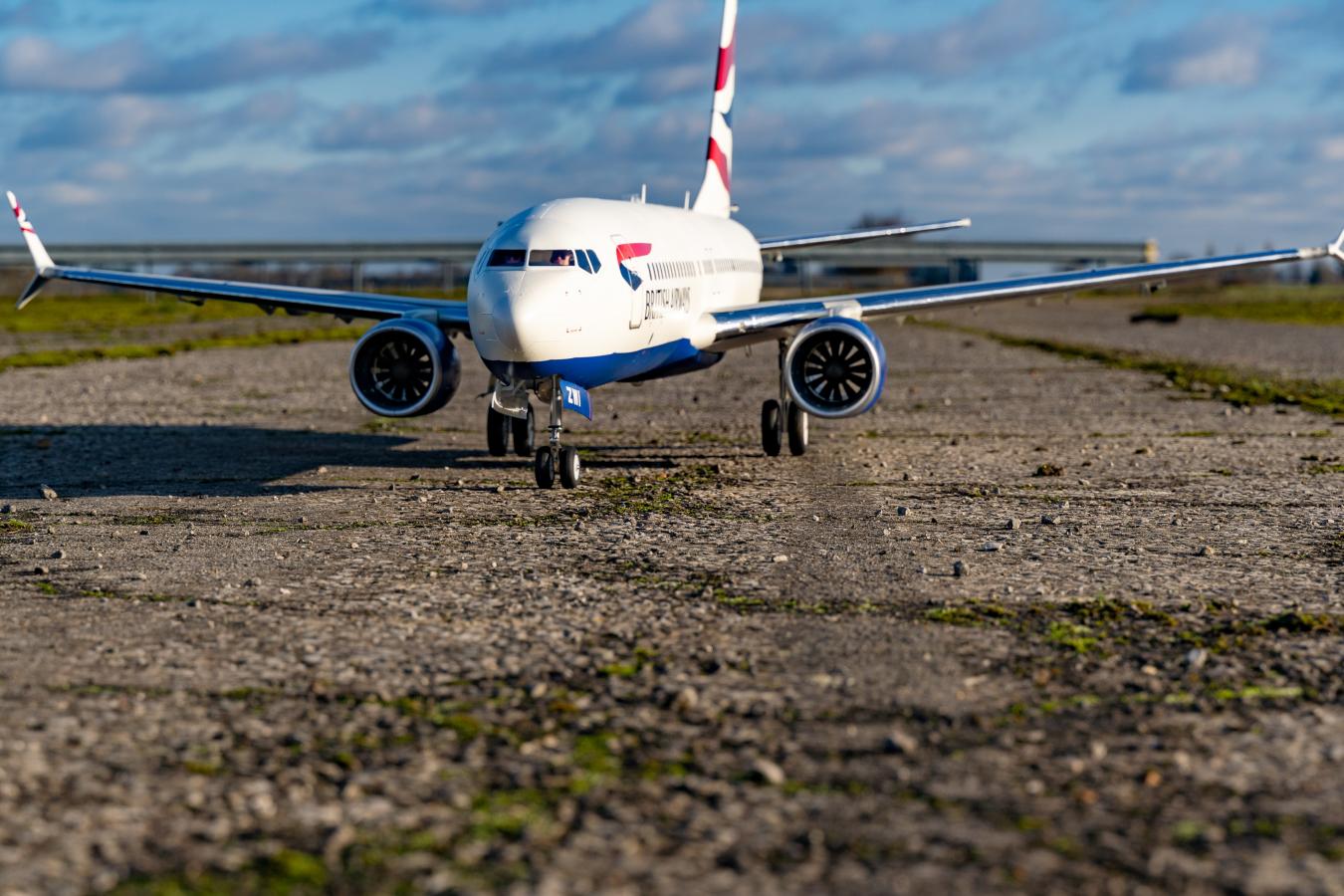

          • Damn I love this thing, got out with it for the first time today. Video to follow.

            Click image for larger version

Name:	DSC00899.jpg
Views:	1628
Size:	153.6 KB
ID:	227238

            Click image for larger version

Name:	DSC00900.jpg
Views:	1619
Size:	166.5 KB
ID:	227239

            Click image for larger version

Name:	Screenshot 2020-01-10 at 15.31.57.jpg
Views:	1575
Size:	66.6 KB
ID:	227240

            Click image for larger version

Name:	Screenshot 2020-01-10 at 15.35.11.jpg
Views:	1611
Size:	64.2 KB
ID:	227241
            Attached Files

            Comment


            • BA, one of my favorite liveries. Very nice!

              Comment


              • Hello all just received my airliner few weeks ago unfortunately had some issues with paint peeling but motion being the great guys they are sent me out my replacement parts without any problems got it all back together he was wondering if I could get some help I had to replace the two engine pods and I was in a rush when I took the electronics out of them I did not mark which one was left or right since I know one of them has reverse thrusting on it was wondering if someone could give me some close-up pictures of the blades so that way I can make sure that I put mine back together correctly thanks a bunch

                Comment


                • slick580, The right side engine has the reversed fan disc and motor. You can go to MotionRC's site and pull up the AL37 then go to spare parts and look at the reversed EDF to get a visual of the orientation of the fan blades.

                  Comment


                  • Originally posted by LowandSlow View Post
                    slick580, The right side engine has the reversed fan disc and motor. You can go to MotionRC's site and pull up the AL37 then go to spare parts and look at the reversed EDF to get a visual of the orientation of the fan blades.
                    Yea was on there found the replacement motor but could not see the blades or anything I believe I have them in correctly I believe the wires are crossed on it as well one of them goes from yellow to red in the engine side. Just wanted to be safe

                    Comment


                    • Originally posted by Slick580 View Post

                      Yea was on there found the replacement motor but could not see the blades or anything I believe I have them in correctly I believe the wires are crossed on it as well one of them goes from yellow to red in the engine side. Just wanted to be safe

                      If you have the reverse fan(below) installed on the right wing the blade should turn clockwise when viewed from the front. If it is the other normal fan it should be turning counter-clockwise.


                      This is what the reverse turning(cw) fan should look like from the front of the plane. If it is turning CCW swap two of the motor leads and it will turn CW and pull the plane instead of pushing air.


                      Comment


                      • Yep I did it correctly then 😬 lol

                        Comment


                        • Originally posted by 4923crew View Post
                          First Flight video footage of my custom AL37 made into a close but not exact Kc-135. It flew really well and other than the extra battery weight, there was minimal change to flight characteristics from stock.

                          video link below:

                          https://youtu.be/Z7AxmLq6O-Y
                          NICEEEEEEE!!!!!!!

                          Comment

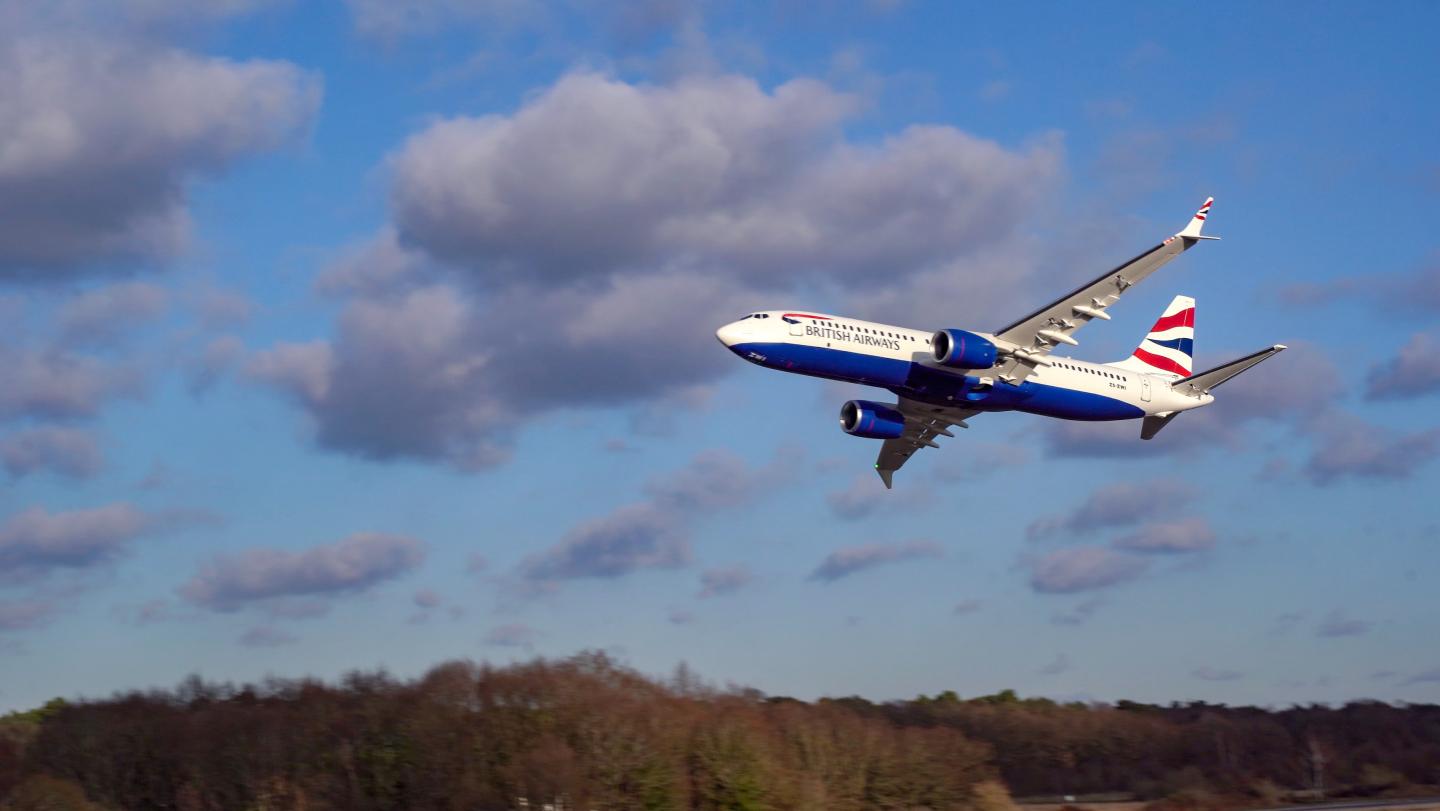

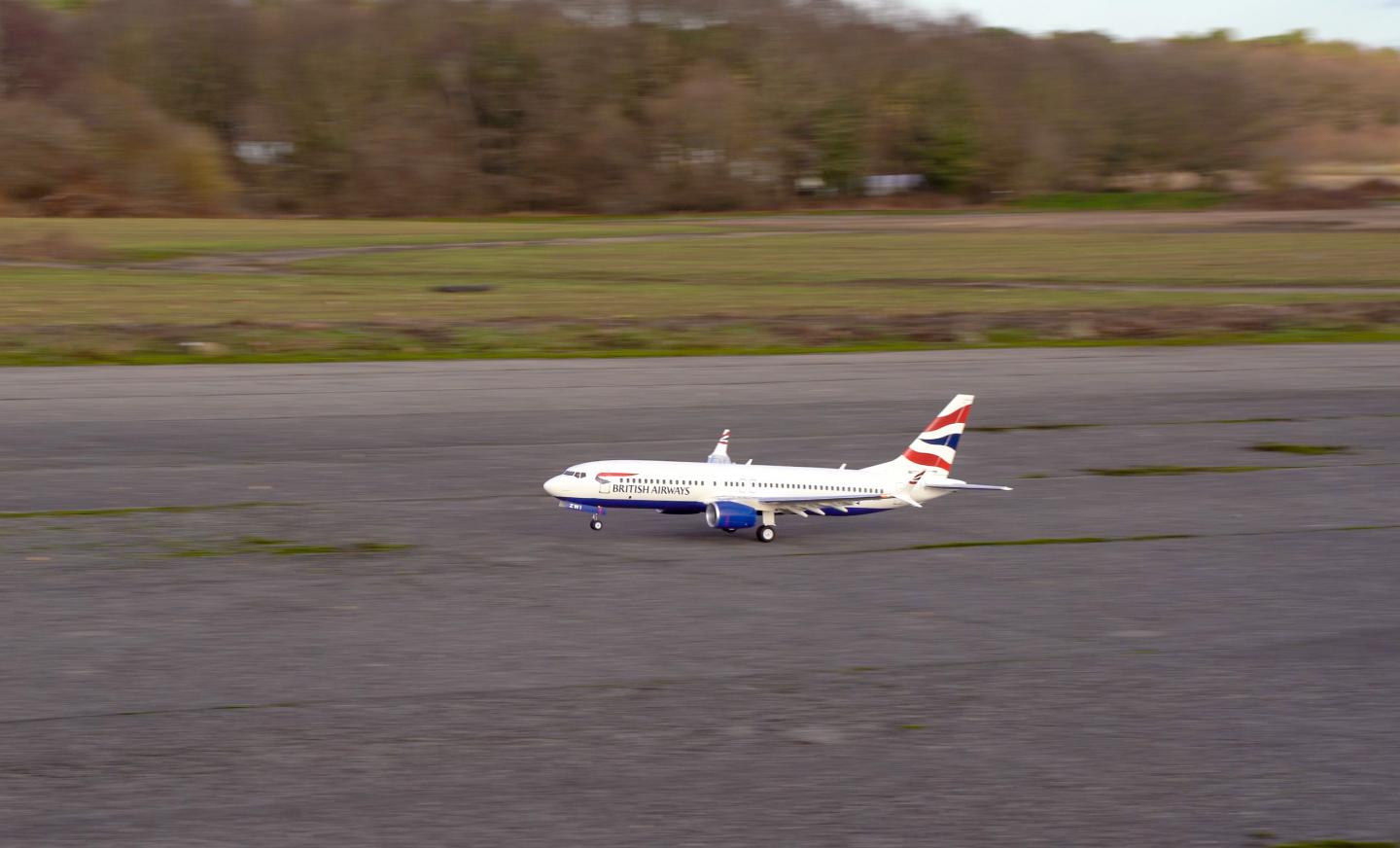

                          • Video of the first flight. So glad to get it down in one piece!



                            Click image for larger version

Name:	Screenshot 2020-01-10 at 15.38.28.jpg
Views:	1430
Size:	105.2 KB
ID:	227372

                            Comment


                            • Very nice!!!! Looks great! Congrats! Jerry

                              Comment

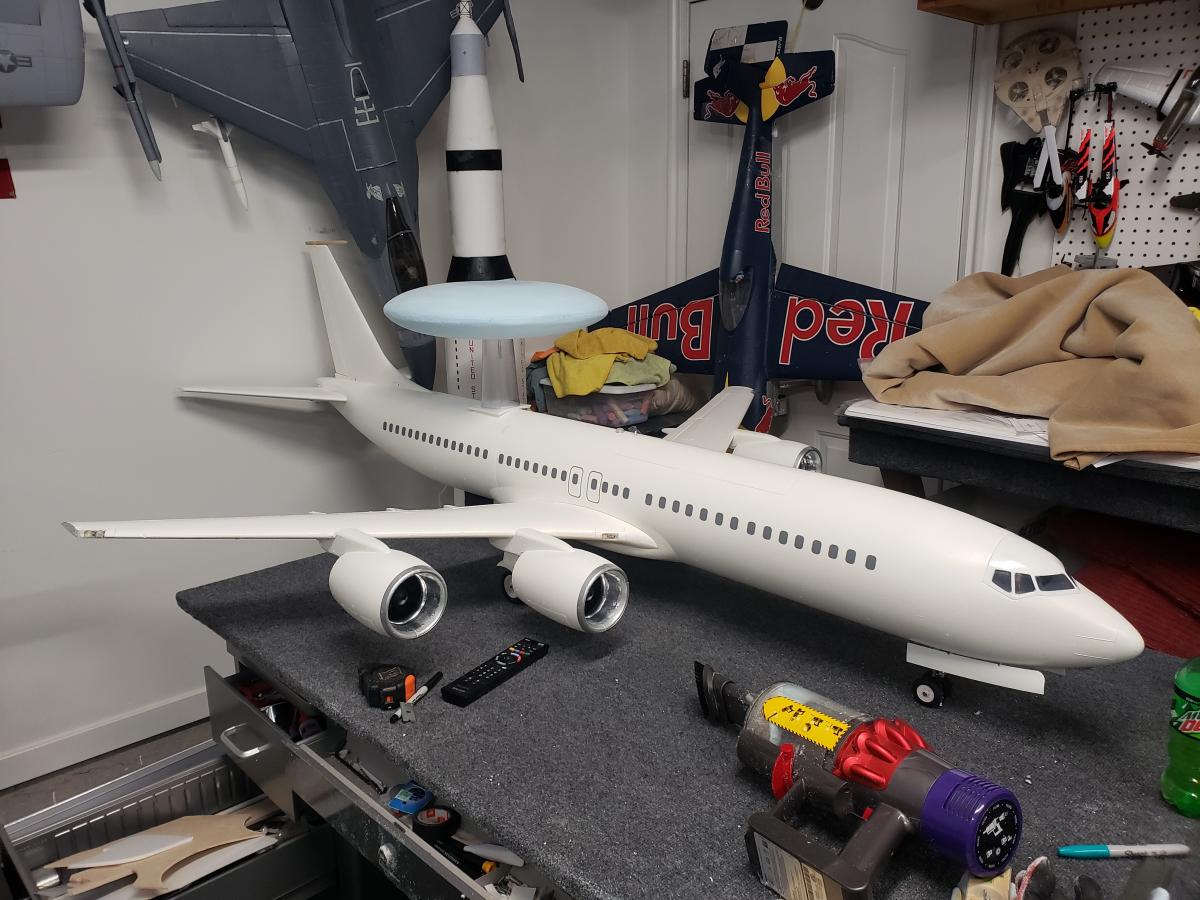

                              • Anyone got a guess what the al37 will become:). The radar dome motor is finshed now i just need to finish the dome and vertical pylons. I Also just finished up a year long scratchbuilt boeing 777 300er.

                                Comment


                                • What does the square slab of blue packing foam do? Nevermind, just expanded the picture and read your explanation.

                                  Comment


                                  • Joey, that is absolutely too cool!!

                                    looking forwards to seeing the finishe product!
                                    Roy Mayoral

                                    Comment


                                    • HEEYYY!!

                                      i wonder if Freewing would think of selling a four engine version??
                                      Roy Mayoral

                                      Comment


                                      • Howdy...Following up on a prior post and reporting on how my AL37 window lighting "experiment" is progressing. GREAT NEWS...I FOUND A SOLUTION that is very light weight and works well.

                                        If you are considering adding this effect, you should do it BEFORE you join the fuselage halves. It's a real challenge to add the fiber optic light pipes after the halves are joined. I decided to stop at 5 windows and the cockpit.

                                        SUMMARY BULLETS
                                        • With this solution, there is no need to paint the interior black to block out the light from an interior light source
                                          • My initial attempt to use an LED strip required a black coating of the interior to prevent the lighted flying banana look.
                                            • I found that the fuselage is so thick that no light was able to show through the window holes with a general interior lighting scheme...SCRATCHED THAT IDEA!
                                        • The fiber optic solution adds very little weight.
                                        • A 5 mm, end glow, plastic fiber optic light pipe is the perfect size (7 mm outside diameter).
                                        • Very little power drain. The LED light source box is powered directly off the 6S flight battery by the regulator.
                                        • Note: The window decal placement is either slightly above or at the longitudinal fuselage brace. Partially drilling into this brace is not going to weaken the structure because when you use 5 min epoxy (i used Kwik Weld J.B. Weld) and secure the optic fiber into the cut-out, it's much stronger than the foam you cut away.
                                        • The light-exit end of the fiber optic light pipe seals the hole in the fuselage. No additional sealing is necessary for this to look good.
                                        PARTS LIST
                                        • 20 feet of 5 mm, end glow, fiber optic, solid core / overall diameter is 7 mm purchased from www.wiedamark.com
                                          • This will do about 20 windows...depending on which windows you select. More fiber optic will be needed if you do the windows in the rear.
                                        • Electronics were purchased from www.davesrc.com and consists of the following:
                                          • White color LED light strips sold in 1 meter lengths. You can cut and/or join these strips to suite your needs with the solderless LED strip connectors from DavesRC.
                                          • LED Dimmer/Flasher - adjusts the lighting effect and the light intensity...I used only the dimmer function.
                                          • Adjustable voltage regulator based on the XLE4005E1 regulator
                                            • Needed to reduce the 6S flight-battery voltage down to 12 volts that is required by the LED light strip.
                                          • Several Solderless LED Strip Connectors.
                                          • Several mini-JST Connectors.
                                        Additional items not from www.davesrc.com are....
                                        • 5 min epoxy...I used Kwik Weld by JB Weld)
                                        • 20 or 22 gauge stranded wire
                                        • Something you can make an opaque light source box from. An old iPhone 4/4S Otter Box is perfect for the job.I used electrical tape to cover the clear window side.
                                          • You can get about 12 light pipes stuck into this Otter Box...more light pipes will require that you make another light source box
                                          • Cut several additional holes in the Otter Box to accept the fiber optic "source" end of the light pipe.
                                        • Dremel tool
                                        • Electrical tape
                                        • Hot Glue Gun
                                        Additional suggestions:
                                        • I stripped away the 1 mm thick outer covering of the central clear light pipe core for about 2 inches and inserted this "naked" core into the light box. This makes the light pipe "source" end just about the perfect diameter to insert into the Otter Box holes.
                                        • Keep the fiber optic away from the flight battery area or you'll find it is a REAL challenge to insert the flight battery into the belly. Ask me how I figured this out? LOL
                                        • You can solder the JST female connector to the two small wires coming from the EC5 connector (EC5 side of the UBEC...not the output side of the UBEC) to get the power for the regulator. Just secure all this with zip ties to minimize the flexing of the wires going to the UBEC. Would hate to have a metal fatigue induced failure here.
                                        • I parallel connected off the regulator output side two additional wires (one + and one -) and ran these to the cockpit where they powered a 3-LED segment for the cockpit lighting.
                                          • The LED light strips are cut-able every 3 LEDs.

                                        Post photos, If you decide to do this with more window.

                                        Cheers - Glider Guy

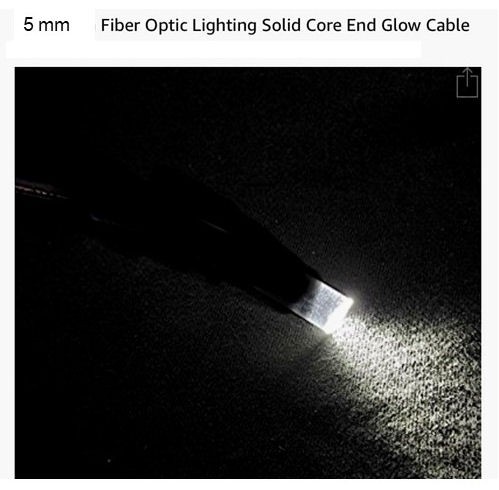

                                        Click image for larger version  Name:	Fiber Optic End Glos Light Pipe.JPG Views:	0 Size:	41.6 KB ID:	227462
                                        Example of One Fiber Optic Run...

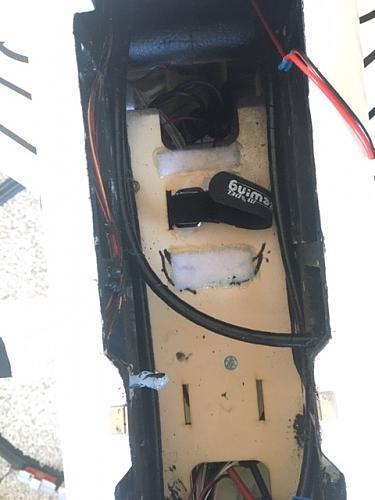

                                        Click image for larger version  Name:	Fiber Optic Run.JPG Views:	0 Size:	54.5 KB ID:	227463

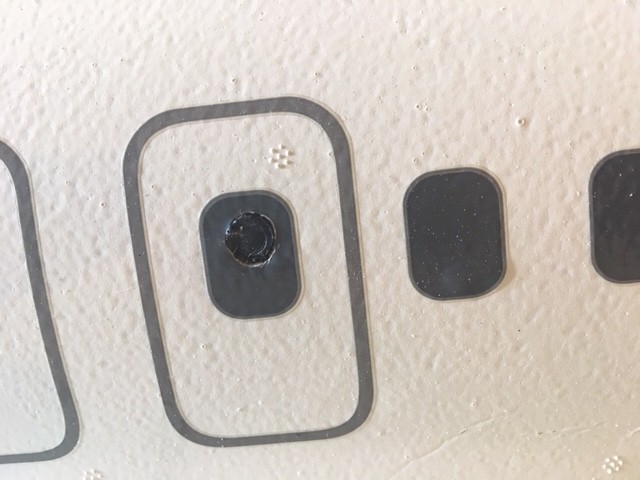

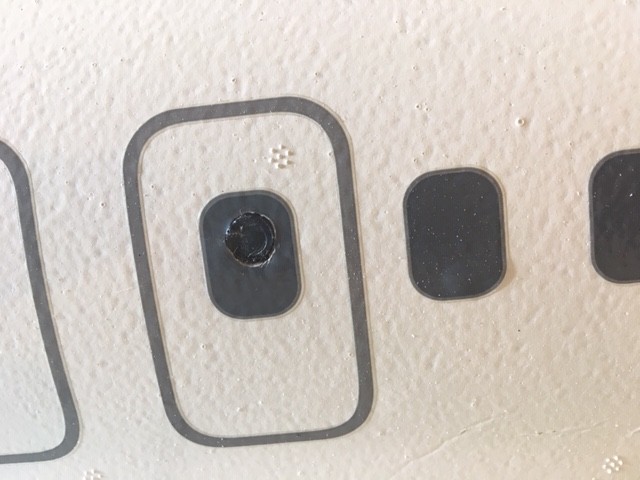

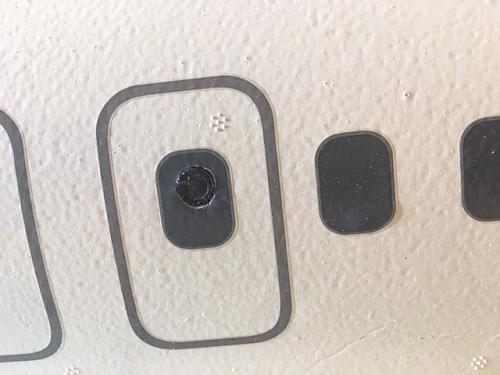

                                        Fiber optic seals the hole just perfect....
                                        Click image for larger version  Name:	Fiber Optic at Window.JPG Views:	0 Size:	65.4 KB ID:	227465

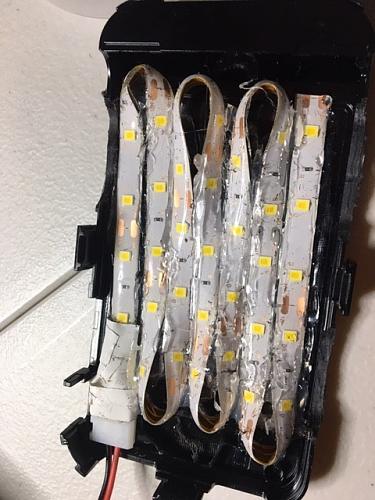

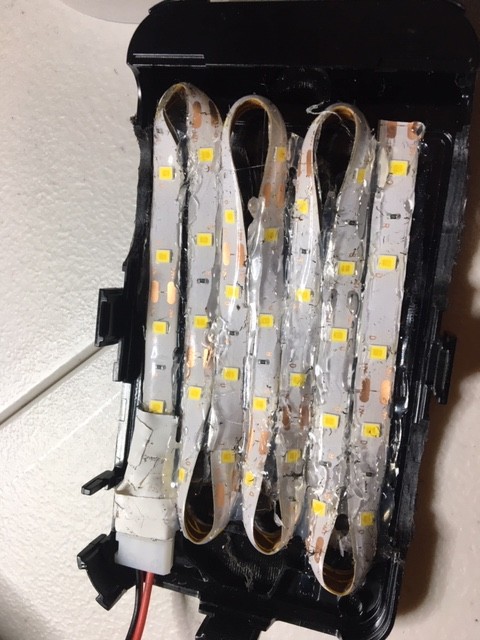

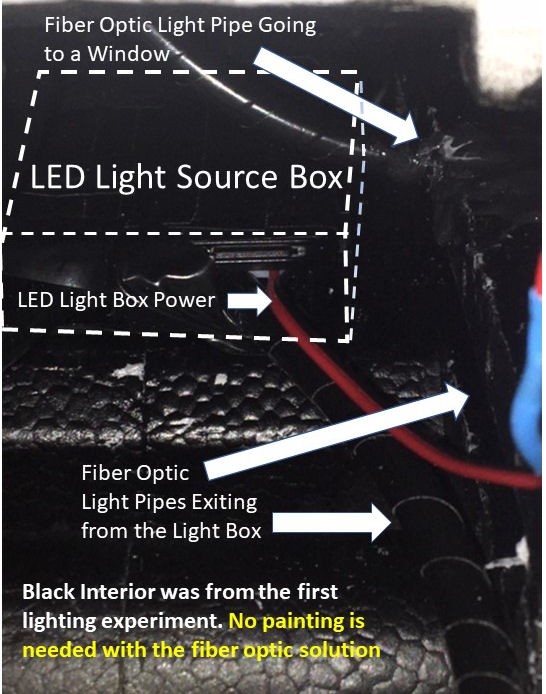

                                        LED strip secured with hot glue inside the light source box...Take s lot of hot glue because it doesn't stick to the LED strip very well.
                                        You can see the "extra" holes that were cut in the sides of the Otter Box to accommodate the insertion of the "source" end of the light pipes.
                                        Click image for larger version  Name:	Inside Light Box.JPG Views:	0 Size:	86.8 KB ID:	227466

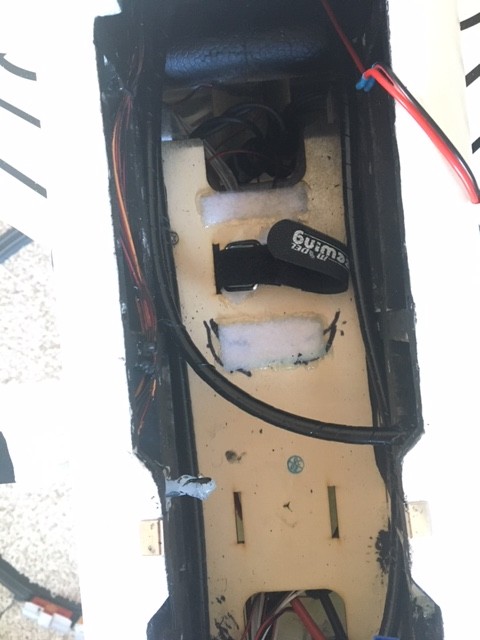

                                        Looking back towards the tail...light source box Velcro'd to the flat shelf behind the battery tray...
                                        Black tape around the LED light source box does not contrast with the black interior very well.

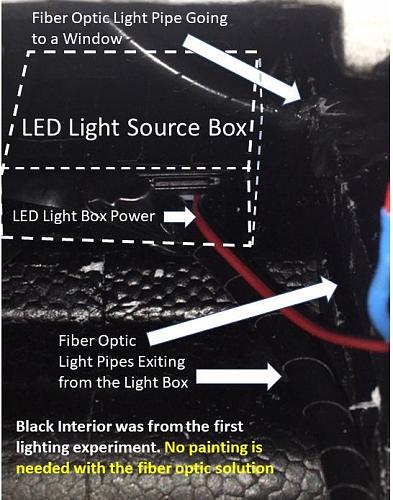

                                        Click image for larger version  Name:	Light Source Box.JPG Views:	0 Size:	99.5 KB ID:	227467

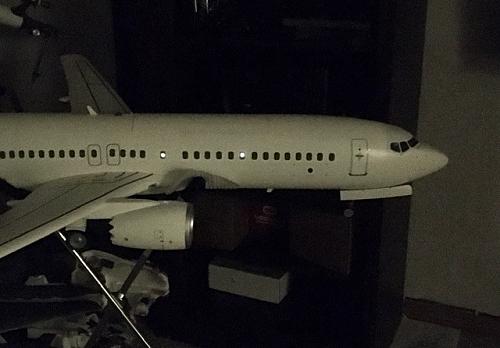

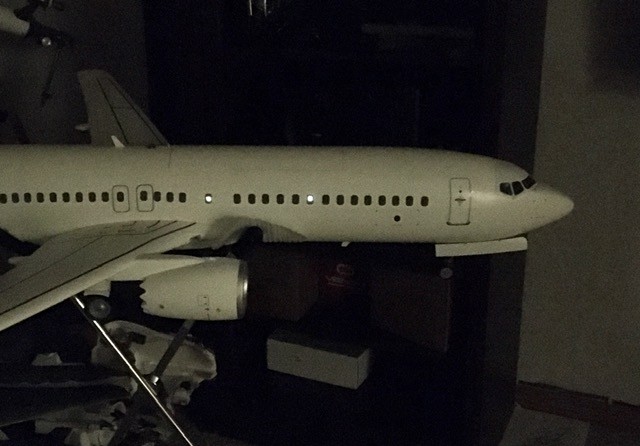

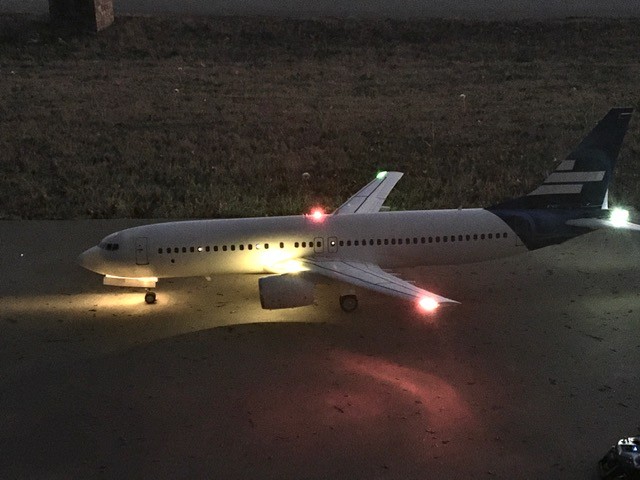

                                        Simulated post sunset lighting w/o exterior lights turned on....I was experimenting with the LED intensity.
                                        Click image for larger version  Name:	No Exterior Lights.jpg Views:	0 Size:	60.7 KB ID:	227468

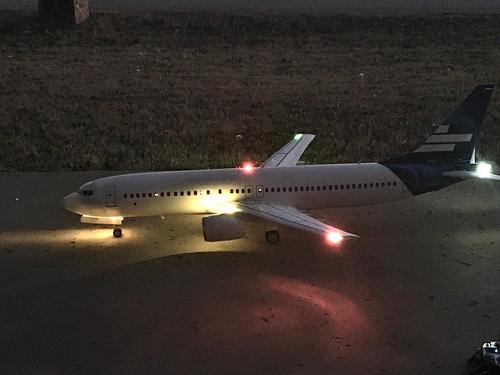

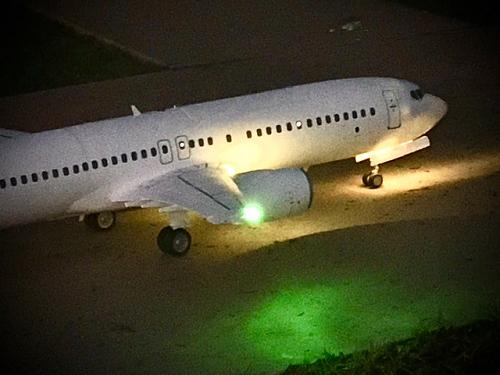

                                        The middle window appears to be washed out by the root landing light. This is an artifact of the camera.
                                        You can actually see it quite well. No Winglets?...I wan't flying / Too Windy.
                                        Click image for larger version  Name:	Left Side.jpg Views:	0 Size:	69.6 KB ID:	227469
                                        Click image for larger version  Name:	Right Side.jpg Views:	0 Size:	66.6 KB ID:	227470

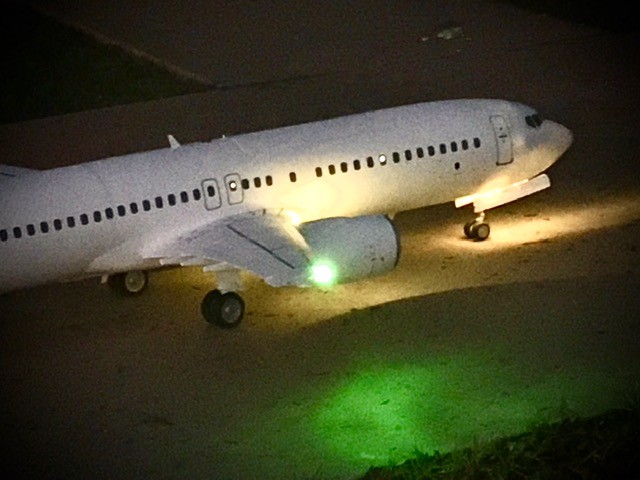

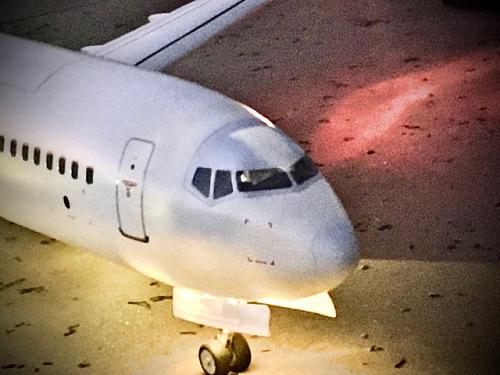

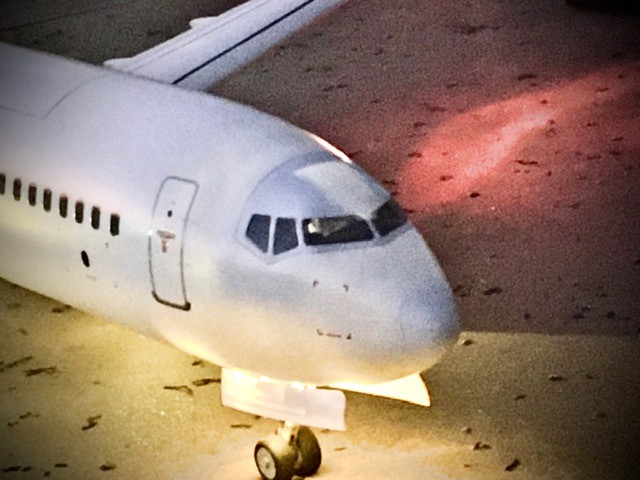

                                        The wheel well landing light washes the fuselage with quite a bit of light. This cockpit lighting effect looks better in person.
                                        Click image for larger version  Name:	Cockpit.jpg Views:	0 Size:	72.0 KB ID:	227471
                                        Attached Files

                                        Comment


                                        • Tricky piece to get shaped correctly but fun:)
                                          Attached Files

                                          Comment
